60cm*100m Roll Hot Peel Double Site Coated Custom Heat Transfer Dtf Pet Film

1 roll
MOQ
negotiable
Price
60cm*100m Roll Hot Peel Double Site Coated Custom Heat Transfer Dtf Pet Film
Features Gallery Product Description Request A Quote
Features
Specifications
Printing Ink: CMYK+W
Size: 60cm*100m
Peel: Cold/hot/instant
Thickness: 75mics
Packing: 2rolls /carton
Weight: 8KG/roll
Fabric: Cotton, Polyester, Blends
Highlight:

Semi Automatic DTF Digital Printing

,

Garment DTF Digital Printing

Basic Infomation
Place of Origin: Guangzhou
Brand Name: SW
Certification: SGS
Model Number: dtf
Payment & Shipping Terms
Packaging Details: 0.62*0.31*0.15m/carton
Delivery Time: 5-10days
Payment Terms: T/T,western union, paypal, L/C
Product Description

DTF transfer film for fabric is specifically designed for use in the DTF printing process on textiles. The film itself is a transparent sheet that holds the printed design temporarily before it's transferred to the fabric.

Product Description:

Specification
Material
PET
Model Number
hot peel / cold peel
Type
DTF printing film
Application
Cotton, poly, blend
Size
30cm*100m, 60cm*100m, A3, A4, A3+
Thickness
75UM
Ink
CMYK + white pigment ink
Peeling Method
Hot / cold
Transfer Temperature
145-160'C
Transfer time
8-15 Sec
Sample
Free sample





Using DTF transfer film involves several key steps. Here’s a detailed guide to help you get started:

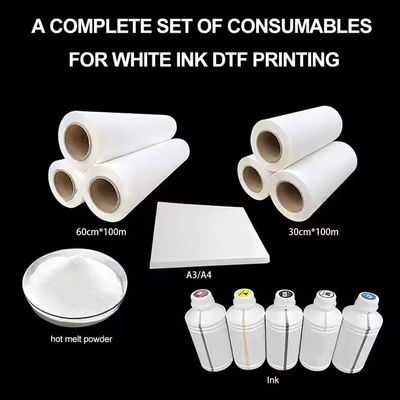

Materials Needed:

  1. DTF Printer: A specialized printer for printing on transfer film. You’ll need one that uses CMYK inks, along with white ink for opacity.
  2. DTF Transfer Film: A transparent, coated film designed for printing designs.
  3. DTF Adhesive Powder: A special adhesive powder that helps bond the printed design to the fabric.
  4. Heat Press: A machine to apply heat and pressure for transferring the design.
  5. Curing Oven (optional): Some setups may require an oven to cure the adhesive powder before pressing onto fabric.

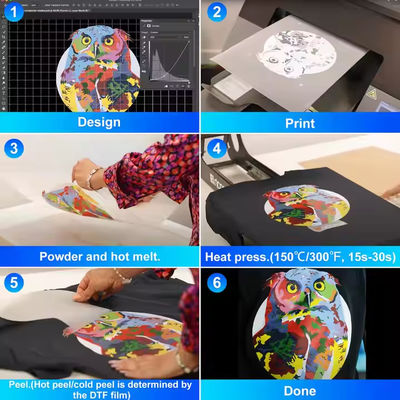

Step-by-Step Process:



60cm*100m Roll Hot Peel Double Site Coated Custom Heat Transfer Dtf Pet Film 0

1. Design Creation

  • Software: Create your design using graphic design software (e.g., Adobe Illustrator, Photoshop, CorelDRAW).
  • File Format: Ensure your design is in the correct file format (usually .PNG or .PDF) with transparent backgrounds for optimal results.

2. Printing the Design on DTF Film

  • Load the Film: Place the DTF transfer film into the printer.
  • Print: Print the design using the DTF printer. Ensure that you print the design in reverse (mirror image) so that it appears correct when transferred onto the fabric.
  • Use White Ink: For vibrant colors and to ensure the design pops on dark fabrics, the printer will also print white ink under the design to create a solid background layer. This is crucial for ensuring color brightness, especially on dark or colored fabrics.

3. Applying Adhesive Powder

  • While Wet Ink: After printing, immediately sprinkle the DTF adhesive powder over the printed film while the ink is still wet. This will ensure the powder sticks properly.
  • Even Coating: Make sure the adhesive powder is evenly distributed over the design to avoid any clumping or uneven transfers.

4. Curing the Adhesive

  • Cure the Powder: The film with the adhesive powder must be heated to cure it. This is typically done in a curing oven or using a heat press. The heat helps the adhesive powder bond with the ink.
  • Temperature & Time: Set the curing oven to around 160-180°C (320-356°F) for about 1-3 minutes. If you don't have a curing oven, some people use a heat press with a lower temperature (about 150°C or 302°F) to cure the powder.

5. Transfer the Design to Fabric

  • Position the Film: Place the cured DTF transfer film onto the fabric, making sure the printed side is facing down.
  • Heat Press: Use a heat press to transfer the design. Set the heat press to around 160-180°C (320-356°F) for about 10-15 seconds, applying medium pressure.
  • Peel the Film: Once the transfer is complete, allow the fabric to cool slightly, then peel the film off gently. The design should now be fully transferred and adhered to the fabric.

6. Post-Pressing (Optional)

  • For extra durability, some people may do a second pressing (without the film) for about 5-10 seconds to set the design even more.

Tips for Best Results:

  • Use High-Quality Film and Powder: Poor-quality film or powder can result in a dull or poorly bonded design.
  • Test Your Settings: Always test the heat press temperature, time, and pressure with different fabrics to make sure you get the best results.
  • Storage: Store your DTF film in a dry, cool place to prevent moisture from affecting the material.

Advantages of DTF Printing:

  • It works on a wide range of fabrics, including cotton, polyester, and blends.
  • Vibrant, full-color prints are achievable.
  • It can be used for both light and dark fabrics, thanks to the white ink layer.
  • The prints are durable and have a soft feel on the fabric, unlike some other transfer methods.



60cm*100m Roll Hot Peel Double Site Coated Custom Heat Transfer Dtf Pet Film 1







60cm*100m Roll Hot Peel Double Site Coated Custom Heat Transfer Dtf Pet Film 2

Packing and Shipping:

60cm*100m Roll Hot Peel Double Site Coated Custom Heat Transfer Dtf Pet Film 3
